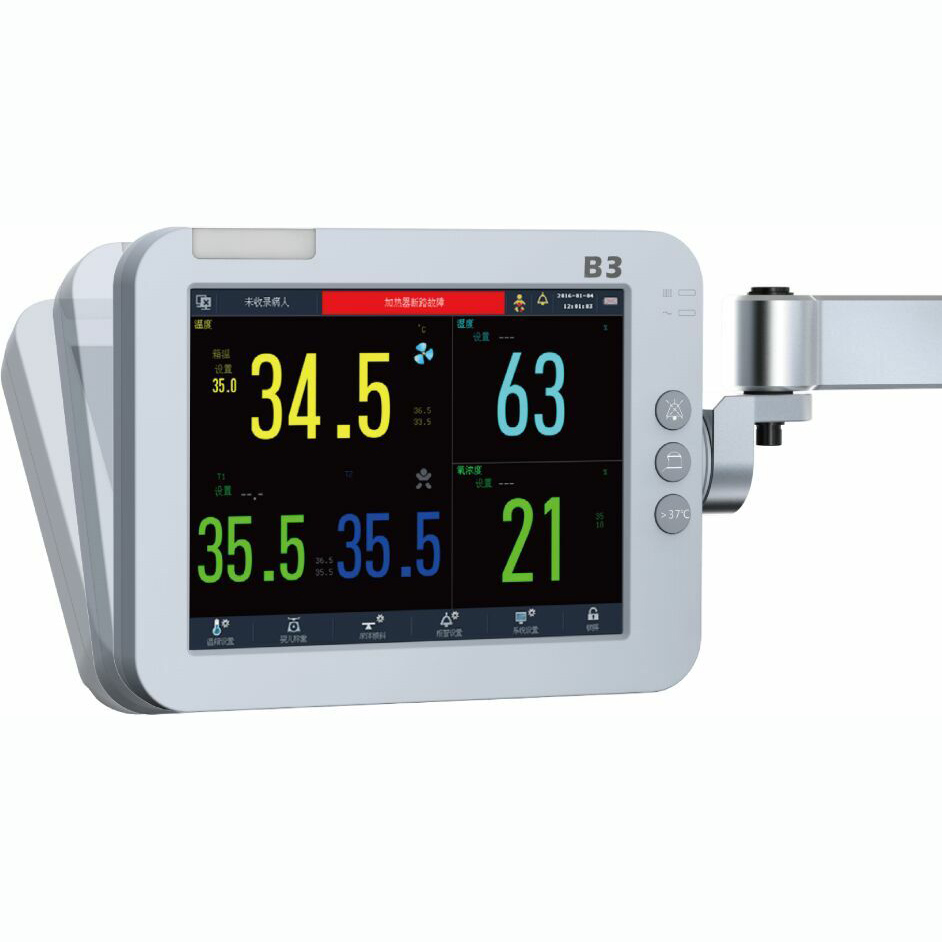

The Comen B3 Neonatal Incubator (also known as the Baby Warmer Incubator) is designed to provide a stable temperature and suitable humidity environment for the treatment of premature infants and critical neonates.
The B3 is a goo place to start in this budget-conscious world.
Let’s explore its features:
- Standard Configuration:
- Humidity Control
- Temperature monitoring (body temperature and incubator temperature)
- Oxygen (O2) Monitoring
- Optional Configuration:
- Weight Scale
- Apnea Monitoring
- Apnea Awakening
- Servo Oxygen Supply
- Damping Doors
- Safety Standards:
- ISO 13485:2003 approved
- MDD 93/42/EEC as amended by MDD 2007/47/EC
- Operation Environment:
- Working Temperature: 20~30°C
- Humidity: ≤80%
- Air Flow: ≤0.3 m/s
- Power Supply: 100-240V~, 50/60Hz±1Hz
- Rechargeable Lithium-ion Battery (4400mAh)
- Battery Recharging Time: Maximum 6 hours
- Battery Backup: 1 hour for continuous working (excluding heating and humidifying functions)
- Indicators: Alarm, Power, Battery, QRS beep, and operating key sound
- Interface:
- Parameter cable interface
- AC power input
- Three auxiliary power outputs
- Plug-in slot
- USB port
- Data Storage:
- Alarm Review: 200 groups
- Power-off storage: Yes
- User-adjustable High and Low 3-level Limits for alarms
- Network connectivity to Central Monitoring System (hardwire/wireless)
- Temperature Control:
- Setting Range: 35.0~37.5°C (Infant mode); 25.0~39.0°C (Air Mode)
- Measurement Range: 25.0~45.0°C
- Resolution: 0.1°C
- Accuracy: ±0.3°C
- Alarm Range: 34~38.5°C (Infant mode), 23~41°C (Air Mode)
- Heating Time: ≤35 minutes (Temperature inside the thermostat cover rises by 11°C)
- Humidification Time: ≤50 minutes (Under indoor conditions: 25°C±2°C, relative humidity of 40%±10%, reaching 36°C with relative humidity of 85%)
- Operation without adding water time: ≥12 hours
- Humidity Control:
- Relative Humidity Range: 30%~95%
- Resolution: 1%
- Accuracy: ±10% (Humidity less than 85%), ≥75% (Humidity over 85%)
- Audible and visual alarms; alarm events reviewable
The Comen B3 Neonatal Incubator prioritizes the growth and stability of fragile patients while ensuring safety and precise monitoring
