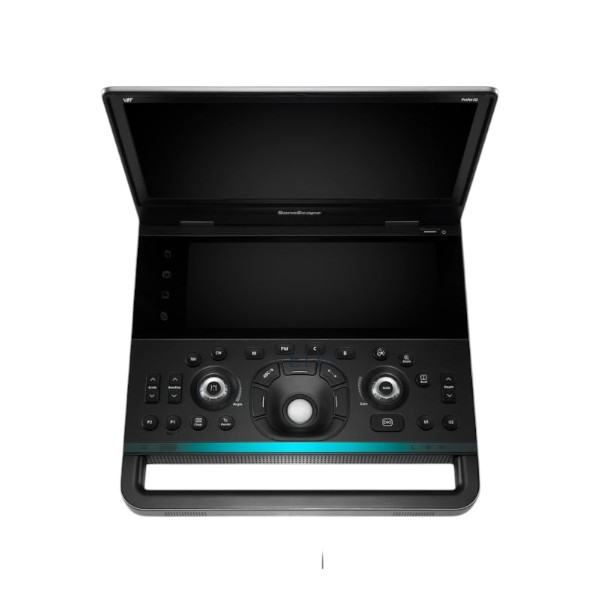

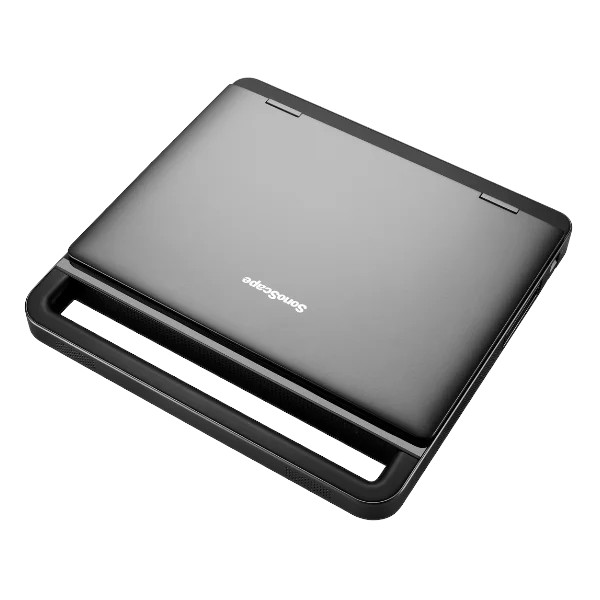

Sonoscape X11 ProPet Portable Veterinary Ultrasound
Quite possibly the best image in its class, been suggested that the X11 is better than all other Chinese ultrasound systems in a similar class. Needs to be seen to be believed.
It is indeed a marvel to use, an ever-increasing library of “how-to-do” SonoHelp guides for the novice veterinary sonographer and user-defined. Further assistance with the SonoAssistant feature
Information such as PDF reports and images can be directly transferred to your Windows PC shared folder via SonoTransfer.
Standard top-end software included and not limited to:
- DICOM
- Panoramic View
- VisNeedle
- μScan
Included Hardware Features:
- Wifi
- ECG
- remote live assistance
- HDMI output (+ USB-3 X3, S-Video)
The SonoScape X11 is a premium portable ultrasound system designed to deliver unmatched precision and efficiency across a wide range of clinical applications. Built on the advanced C-Field+® platform, the X11 combines high-end imaging capabilities with intelligent workflow tools, making it ideal for point-of-care diagnostics and bedside use.
Its compact design includes a large, high-resolution display, a touchpad (X11) or trackball (E11) with adjustable sensitivity, and a magnetic charging port that enhances durability and ease of use. The system supports up to four probes, with automatic probe recognition and preset activation, streamlining the scanning process.
Key features include SonoExam, which records the entire scanning session for easy review, and SonoPage, a customizable interface that consolidates annotations, measurements, and body marks into one organized view. Voice command functionality allows hands-free control of key operations, while real-time spectral Doppler and automated cardiac measurements improve diagnostic accuracy and speed.

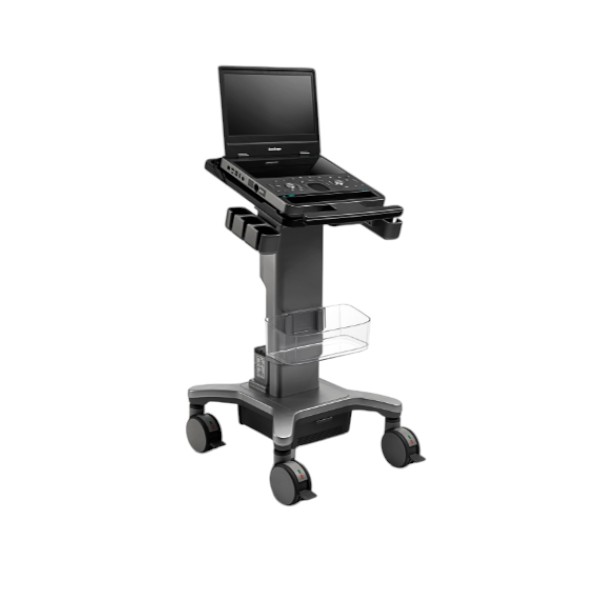

With up to 8 hours of battery life using the E-Pack and trolley setup, the X11 ensures uninterrupted workflow in demanding environments. Whether in general imaging, cardiology, or emergency care, the SonoScape X11 empowers clinicians with smart tools and reliable performance for confident decision-making
- Display: 15.6″ high-resolution color LCD monitor + 12.3 Multi-gesture touch screen
- Platform: C-Field+® imaging platform
- Design: Compact, portable laptop-style unit
- User Interface: Touchpad (X11) or trackball (E11) with adjustable sensitivity, voice command support, and customizable SonoPage layout
- Battery Life: Up to 8 hours with E-Pack and trolley setup. 1.5 Hours from built-in battery
- Probe Support: 1 to 4 probe extender ports with auto recognition
- Applications: General imaging, OB/GYN, cardiac, MSK, vascular, urology, GI, and point-of-care
- Measurements: Real-time spectral Doppler, automated cardiac measurements, 2D cardiac analysis
- Workflow Tools: SonoExam (auto scan recording), SonoHelp (clinical guidance), SonoAssistant (protocol support)
- Weight: Approx. 6.5 kg
- Dimensions: 378 mm × 352 mm × 114 mm
- Connectivity: Magnetic charging port, USB, and DICOM support
- Certifications: CE marked, BIHS validated
Additional information
Weight | 40 kg |
---|
Downloads
ProPet E11&X11 brochure
