Biolight P12 Modular Vet Monitor + EtC02

Description

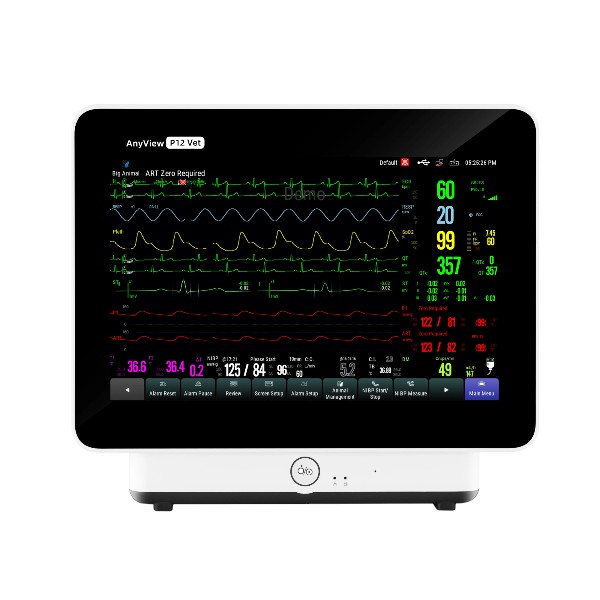

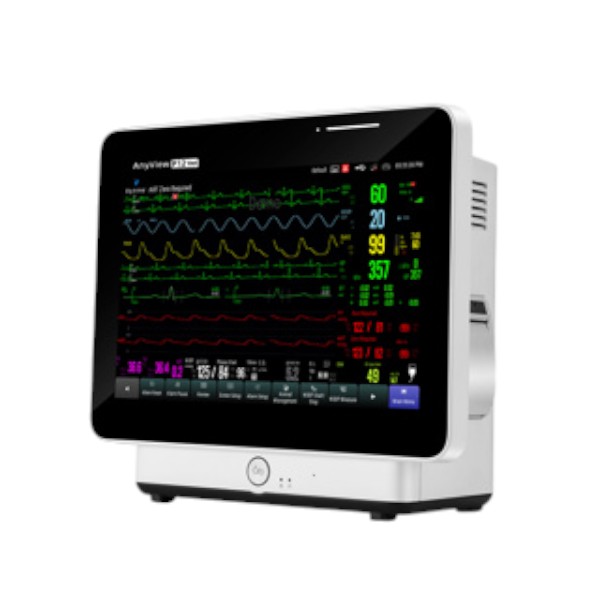

Biolight P12 Modular Vet Monitor + EtC02

The Biolight P12 Veterinary Monitor is a modular, multi-parameter monitor designed specifically for veterinary use. Here are some of its key features:

• Comprehensive Monitoring: It monitors vital parameters such as SpO2, NIBP (Non-Invasive Blood Pressure), and more, ensuring thorough patient care
• 12.1-inch TFT LCD Touch Screen: The display is capacitive and allows for easy navigation with swipe gestures
• Voice Assistant: The monitor includes a unique voice assistant feature for hands-free operation
• Adaptive Brightness: It automatically adjusts screen brightness based on ambient light conditions
• Advanced Technologies: Utilizes Nellcor/Masimo SpO2 technology for improved motion resistance and low perfusion performance, and Suntech Vet NIBP technology for faster, safer, and more accurate measurements
• Connectivity: Offers LAN and wireless connections for flexible data management

This monitor is designed to be lightweight and modular, making it suitable for various veterinary settings

Standard Config:

P12V Main unit with 4 module bays

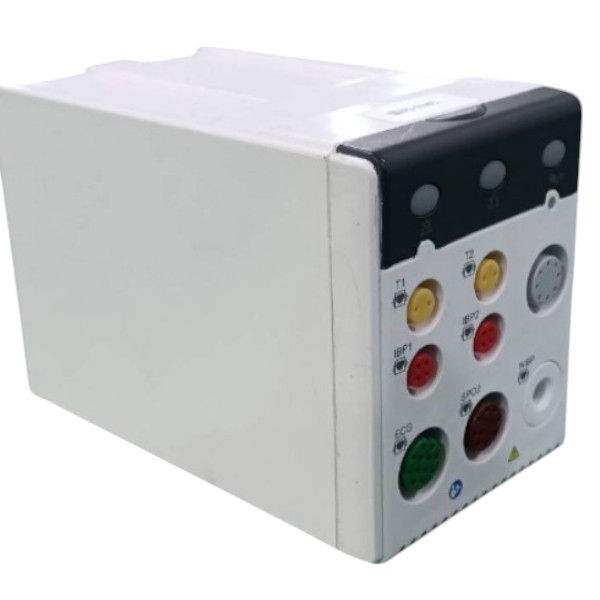

MPM2 Parameter module with: (2 module bays size)
NIBP
SpO2
3-Lead ECG
2-Temp

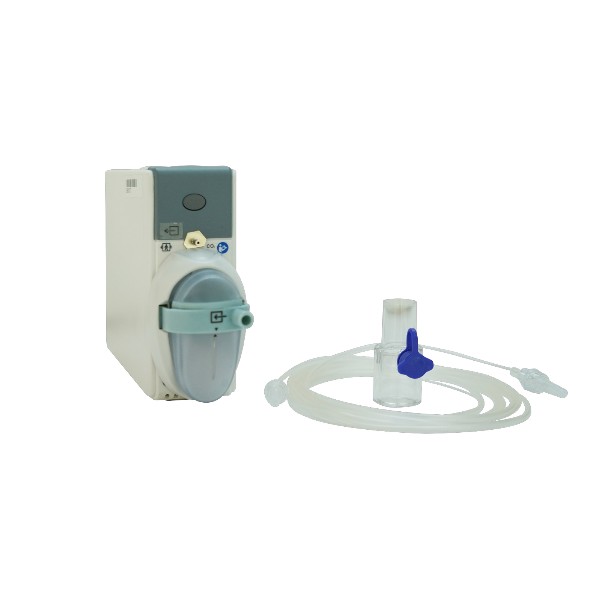

BLT Sidestram EtC02 Module

Biolight P12 Modular Vet Monitor + EtC02 – Main Unit Specifications

Size & Weight
Dimension: 323x281x157mm
Weight: <5 kg
Modular slot: 4

Display
Size: 12.1-inch color TFT LCD
Resolution: 1280×800 pixels
External display
Type: DVI Display
Resolution: above 1920 × 1080 pixels

Power Supply
Input voltage: AC (100-240) V (#10%)
Frequency: 50Hz/60Hz
Input power: 1.7A -0.8A

Battery
Type: Rechargeable lithium-ion battery, 11.1
VDC,5000mAh
Operating time: > 4h
Charge time: Less than 4 hours to 100% (Turn off)
Less than 6 hours to 100% (Turn on)

Recorder
Type: BTR50S thermal dot array
Paper width: 50 mm
Recording speed: 12.5 mm/s, 25 mm/s, 50 mm/s
Recording waveform: Maximum 3 tracks

Data storage
Trend data:
Long trend: 1800h, minimum resolution: 10 min
Medium trend: 180h, minimum resolution: 1 min Short
trend: 6h, minimum resolution: 5 second
Parameter alarm event: At least 3000 parameter alarm
events and associated parameter waveform at the
moment
ARR events: 3000 ARR events
NIBP result: At least 2400 groups
Holographic waveform: At least 72 hours
