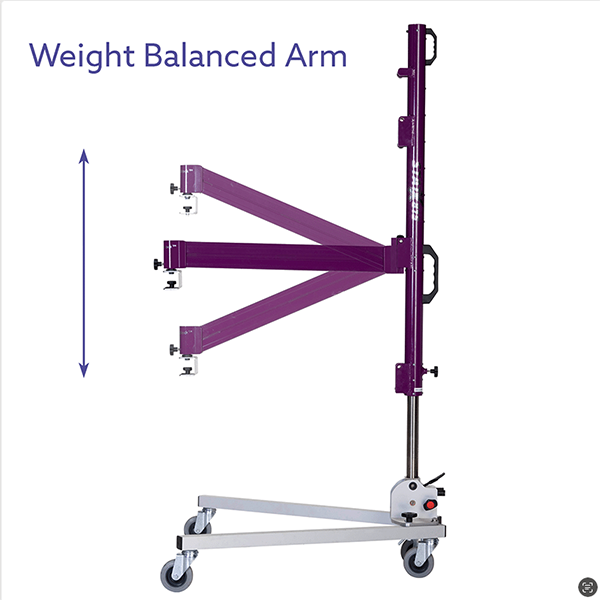

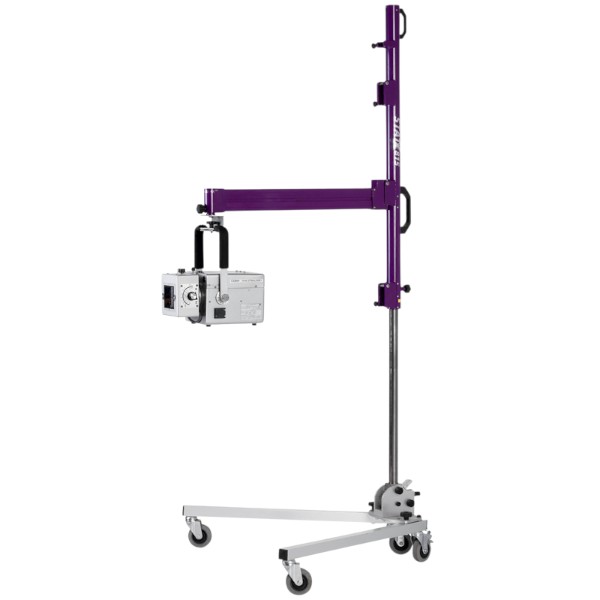

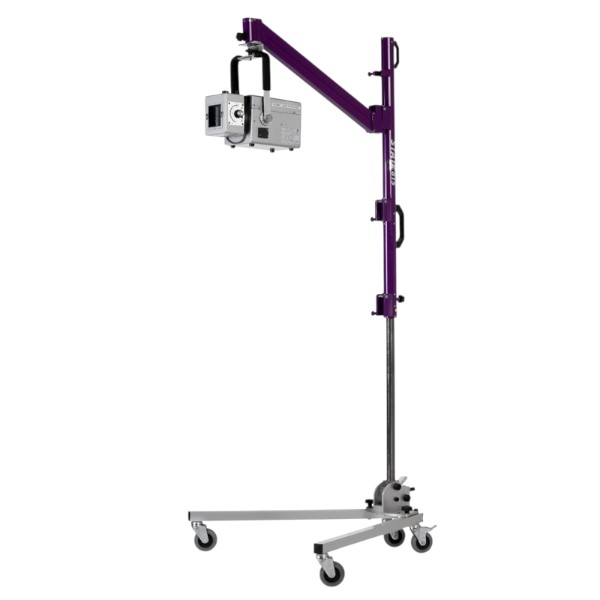

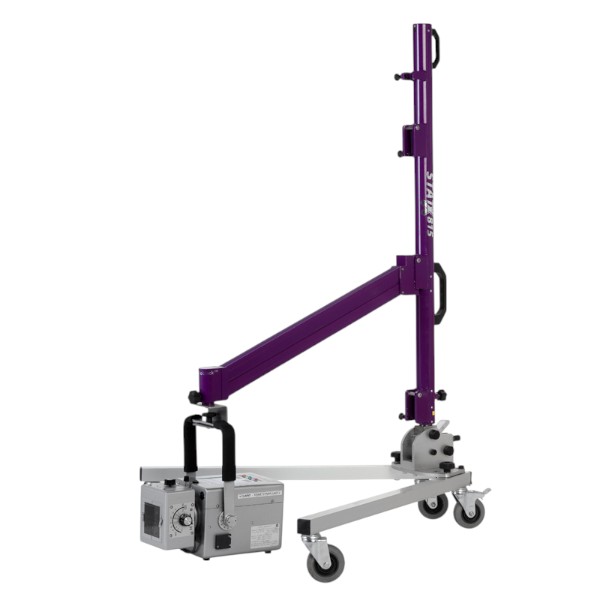

This Mobile X-ray Generator Stand is the most advance all-purpose, multifunctional, and portable stand for all mobile imaging professionals.

• The Stat-X Vaquero comes in 2 versions depending on the weight of your X-ray source.
• For the 6-16 kg model is also a version with short legs and extra counterweight available.

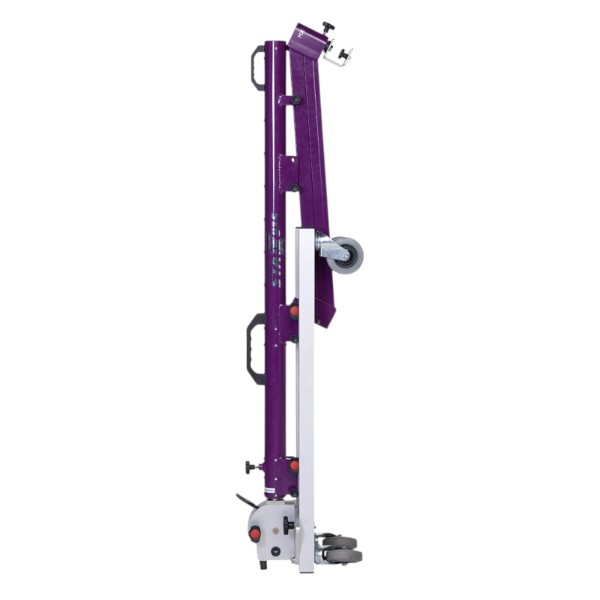

The lightweight and foldable Stat-X Vaquero mobile stand help imaging professionals to work efficiently daily. Therefore, this mobile X-ray generator stand is the best equipment for all mobile imaging professionals travelling around.

Weight portable X-ray source: 6,0 – 16 kg

• Swingarm length: 750 mm
• Vertical travel arm: 700 mm
• Vertical travel stand: 700 mm
• Max height bracket: 209 cm

Optional with short legs (50 cm instead of 90 cm) and extra counterweight (6.5 kg).

Weight portable X-ray source: 16,1 – 25,0 kg

• Swingarm length: 580 mm
• Vertical travel arm: 500 mm
• Vertical travel stand: 700 mm
• Max height bracket: 198 cm

Specifications:

• Transport size: L 147 x W 30 x H 32 cm
• Weight: 22 kg
