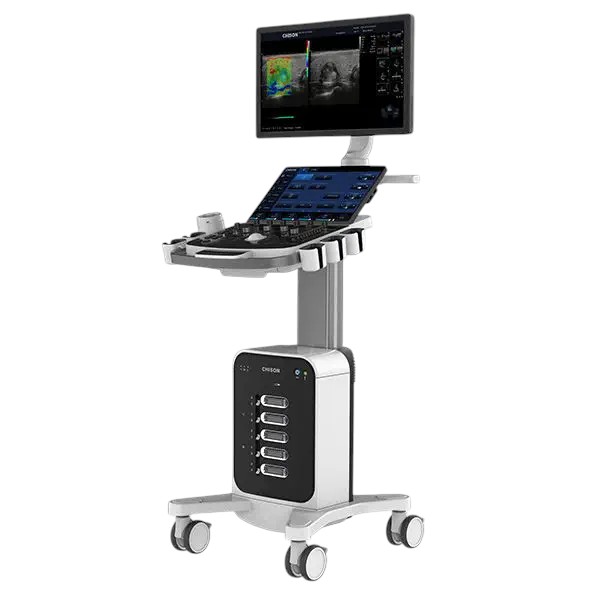

Chison SonoMax 7 Cart Ultrasound

Description

Chison SonoMax 7 Cart Ultrasound

Introducing CHISON’s innovative SonoMax 7 ultrasound machine, designed specifically for healthcare professionals. This advanced device ensures precision care and enhances patient outcomes. With its sleek design, intelligent features, outstanding performance, and ergonomic build, SonoMax 7 sets a new benchmark for cart-based ultrasound, revolutionizing the future of medical imaging.

• Larger screen for enhanced clarity and a compact footprint for maximum mobility.
• Exceptional performance driven by the MAX++ platform, catering to diverse applications in General Practice, Women’s Health, and Cardiology.
• Streamlined imaging workflow with advanced solutions to boost efficiency, allowing you to focus entirely on delivering exceptional patient care.



Chison SonoMax 7 Cart Ultrasound Specifications

The Perfect Combination of Elegance and Power

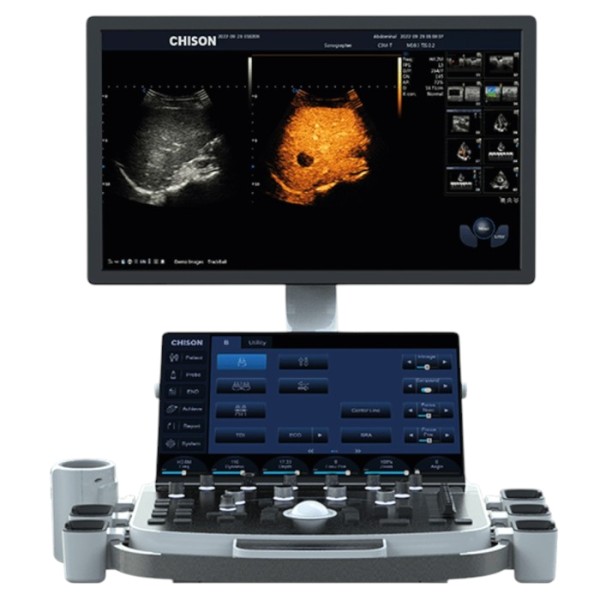

The CHISON SonoMax 7 – a seamless blend of ergonomics and functionality for superior imaging experiences. Boasting a stunning 23.8″ HD LED display and four pinless transducer
connectors, (five available as an option) the SonoMax 7 delivers unmatched image quality in a sleek design.

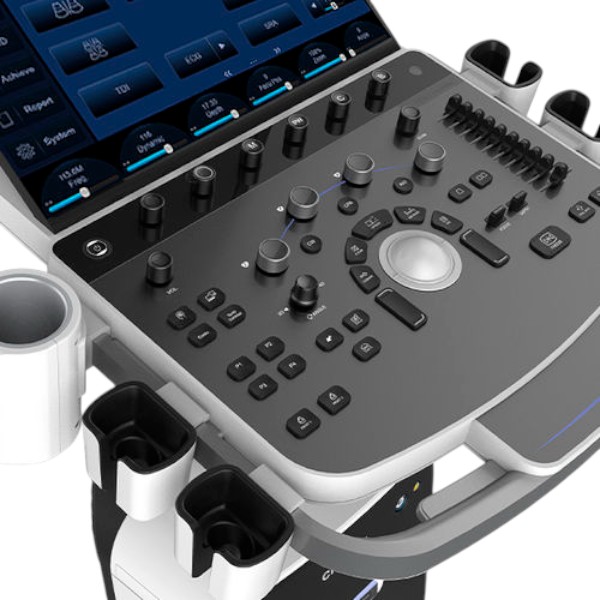

Enjoy ultimate flexibility with its ergonomic features, including a 20cm height adjustment, 12° tilt keyboard, and 10 TGC segments for precise image control. With the SonoMax 7, physicians
can enhance both patient care and personal comfort, creating a more efficient and satisfying imaging environment.

Versatile Applications Scenarios

Discover the future of medical imaging with SonoMax – a versatile, cart-based ultrasound system designed to meet a wide range of imaging needs. Whether your focus is General Imaging,
Women’s Healthcare, or Cardiovascular, SonoMax offers state-of-the-art ultrasound technologies tailored to your practice.

Experience unmatched performance, precision, and convenience with its advanced features and powerful tools. For physicians who prioritize accuracy, efficiency, and comfort in their daily
imaging tasks, SonoMax 7 is the ultimate solution.



SonoContrast

• Developed to visualize the micro-circulation in tissue.

• Potentially be used to improve diagnosis and therapy in several clinical situations.

• More sensitive, better performance.









Shear Wave Elastography

• P-SWE point shear wave imaging, high precision single-point measurement, higher penetration.

• 2D-SWE surface shear wave imaging,  real-time two-dimensional measurement to obtain more diagnostic information.

• The system can provide a variety of quantitative analysis parameters, such as velocity values, Young’s modulus and so on.











Volume Flow

• A three-dimensional technology that can provide real-time visualization of

hemodynamics blood flow with a density appearance.















Strain and Strain Rate

• A new non-invasive method for assessment of myocardial function.

• Ability to differentiate between active and passive movement of myocardial segments, to quantify intraventricular dyssynchrony.

• To evaluate components of myocardial function.











SonoPW

• The sample gate can be extended to 4 during PW mode.

• It can switch and active each sample gate to realize multi-point spectrum measurement in the same cardiac cycle at the same scanning
plane; Supports synchronous display of spectrum and speed value.









Sono – OB

• Automatically measure BPD, HC, AC, FL, NT.

• Efficiency and accuracy.













Base Model:

• 23.8″ high-resolution LED monitor
  + 15.6″ touch screen
  + 4 Probe connectors
• 500G SSD; 8 USB ports
• B, 2B, 4B, B/M, B/BC, CFM, PW, Power Doppler/Directional PD, Instant Duplex, Chroma B&M&PW, Full Screen
• Automatic PW trace and measurement in real time
• with 4D module+CW module (without ECG module and without a Pencil Probe port)
• TGC
• Super Image module: FHI,, Multiple Compound Imaging, SRA (Speckle Reduction Algorithm), AIO
• Q-Image (intelligent image optimization), X-contrast, Q-beam, Q-Flow
• Measurement & calculation software packages: General, OB&GYN, Cardiac
• 2D Steer
• LGC
• B/BC mode
• TSS
• Triplex/Quadplex
• HIPPA
• Auto IMT
• SonoColor
• Intelligent Doppler
• Trapezoidal Imaging
• Extended Imaging

Probes Included: May be exchanged

3.0MHz ; 112 elements; Convex Probe C2-6

7.5 MHz ; 128 elements; 40mm; Linear Probe L4-10

3.0 MHz; 64 elements; Phased Array Probe S1-5P
With extended Cardiac Package: Free Steering M, Color M,TDI,CW
