Howell HE-608-A Electro Hydraulic Operating Table
Howell, a ISO13485 accredited Chinese manufacturer offer the HE-608-A Electro Hydraulic Operating Table. It is an affordable patient surface for your OR
Please allow 6 – 8 weeks for delivery.
Description

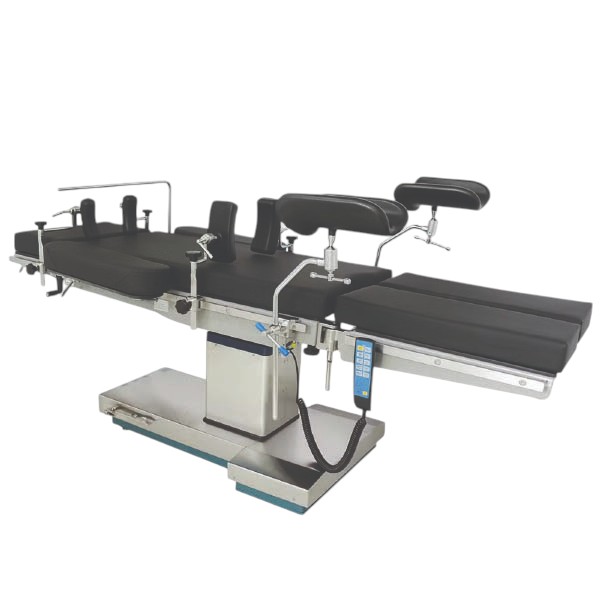

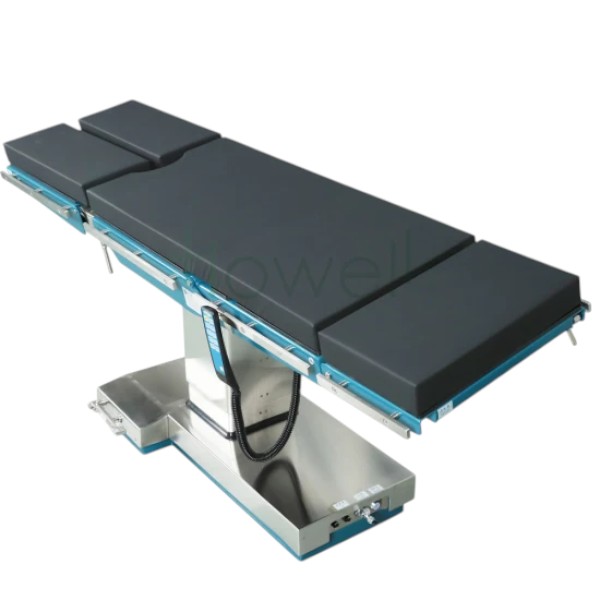

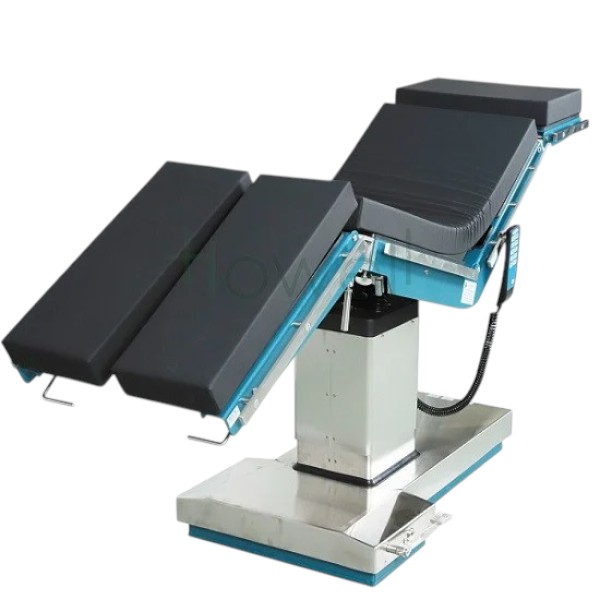

Howell HE-608-A Electro Hydraulic Operating Table
HE-608A is a multifunctional operating table developed by our factory. It adopts the most advanced microcomputer control and electro-hydraulic transmission technology. It can easily manipulate the various functions of the table. It has a super high load-bearing capacity of 350kg and can meet patients of various body types. The product is easy to operate. It has strong versatility, fine craftsmanship, and quality that has reached the international level.
- Using microcomputer control, advanced electro-hydraulic transmission technology, replacing the traditional electric push rod technology, making the body position more accurate, and the running speed more uniform and stable.
- The hydraulic system adopts high-pressure hydraulic components, the overall bearing capacity reaches 350kg, the performance is more excellent, and it is durable.
- The head and leg plates are adjusted pneumatically, which is convenient for adjustment and more precise positioning.
- 80mm double-layer memory foam mattress, which evenly distributes the patient’s weight on the entire cushion, reduces the risk of bedsores during surgery, and the surface of the mattress is seamless, antibacterial and easy to clean.
- The table top frame is made of high-quality steel plate by bending, the base and the lifting column cover are made of 304 stainless steel plate, which is resistant to impact, damage and convenient for cleaning and disinfection.
- The base is T-shaped design, which provides more comfortable foot space for medical staff when standing.
- Base brake device: The bed can be firmly fixed by means of pedal operation. (Optional electric brake)
Standard accessories
- Mattress: 1set
- Hand controller: 1 piece
- Waist support: 2 pieces
- Shoulder support: 2 pieces
- Arm plate: 2 pieces
- Leg holder: 2 pieces
- Anaesthesia screen frame: 1piece:
- Clamp : 2 pieces
- Fixer: 3 pieces
Howell approved ISO13485 quality system certification ( SGS Switzerland company ), and a number of products gained the European Union CE certification. Howell products are not only marketing in China but also exported to most countries and regions of Europe, America, and Asia. Product quality and after-sales service are highly evaluated by a vast number of users and recognized. In the future, the manufacture, innovation, and vision of Howell as always, and provide higher quality products and services for customers and partners, focusing on high-tech operating room equipment, is committed to become a global leading enterprise and brand for operating room equipment!
Howell HE-608-A Electro Hydraulic Operating Table
- Height Adjustment: 700-1000mm (excluding mattress height)
- Lateral Tilt: The table can be tilted 20° to the left or right.
- Headrest Tilt: The headrest can be adjusted up and down, with a maximum tilt of 90°.
- Trend/Reverse Trend：30° (electic control)
- Tabletop Dimensions: Length 2000mm, Width 520mm (including side rail 580mm)
- Load Capacity: 350kg
- Control System: Microcomputer control with electro-hydraulic transmission technology
- Mattress: 80mm double-layer memory foam, seamless and antibacterial
- Material: Tabletop frame made of high-quality steel plate; base and lifting column cover made of 304 stainless steel
- Base Design: T-shaped for comfortable foot space
- Brake Device: Pedal-operated base brake (optional electric brake)
- Adjustments: Pneumatic head and leg plates for precise positioning
Additional information
| Weight | 150 kg |
|---|
