Famed STRIDER Patient Trolley – 2 Section
- Ergonomic & Mobile: Stable two-column frame with large wheels for smooth transport.
- Safety: Long side rails, emergency brake, and central locking.
- Comfort: Seamless patient transfer and adjustable positioning.
- Imaging: X-ray compatible with integrated cassette tray.
- Durable: 250 kg capacity and antibacterial build.
- Versatile: Includes IV poles, Optional: oxygen holder, monitor shelf, and fifth wheel.
Lead time: 10-12 Weeks
Famed STRIDER Patient Trolley – 2 Section

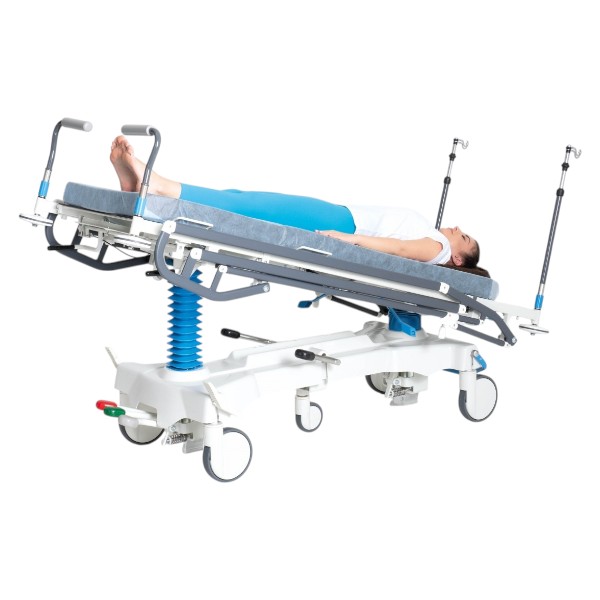

The Famed STRIDER Patient Trolley – 4 Section is a robust, ergonomic solution for safe and efficient patient transport in medical settings. Featuring a two-column structure and large 200 mm wheels, it ensures stability and smooth mobility across various surfaces. Its full-length side rails and zero transfer gap enhance patient safety during transfers. The trolley supports up to 250 kg and is compatible with X-ray imaging thanks to its transparent mattress platform. With manual height adjustment, Trendelenburg positions, and gas spring-controlled sections, it offers versatile positioning. Additional features include the QuickBrake™ system, IV poles, oxygen holder, and foldable push handles for convenience.
- Designed and built in Poland
- Hydraulic Operation – lower ownership cost long term
- C-Arm and Imaging Friendly

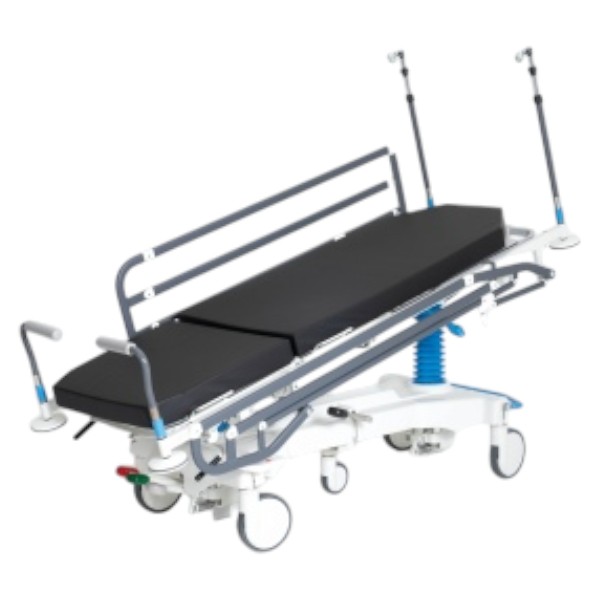

Config Offered:
- 4 Section bed base
- X-ray translucent pallet (tray for X-ray cassette WW-24.5)
- steel sections covered with powder paint in RAL 9002 colour
- adjustable back and thigh rest segment (gas springs)
- adjustable shank rest (ratchet mechanism)
- adjustable height and Trendelenburg/ reverse Trendelenburg (hydraulically)
- base with ABS covers in RAL 9002 colour
- four wheels (200 mm) with a central blockade
- Side Rails
- 8cm Mattress
- Headboard
- Footboard with fixed push handles
Safety and Comfort
The Famed STRIDER Patient Trolley – 2 Section ensures patient safety with side rails extending 1480 mm along its length. Its high safe working load (SWL) of 250 kg supports the secure transport of heavier patients. Large 200 mm wheels enhance maneuverability, while the QuickBrake™ emergency system enables immediate halting for rapid, life-saving interventions. A zero transfer gap and a specially designed mattress with integrated handles minimize fall risks during patient transfers and support medical staff efficiency.
High Functionality

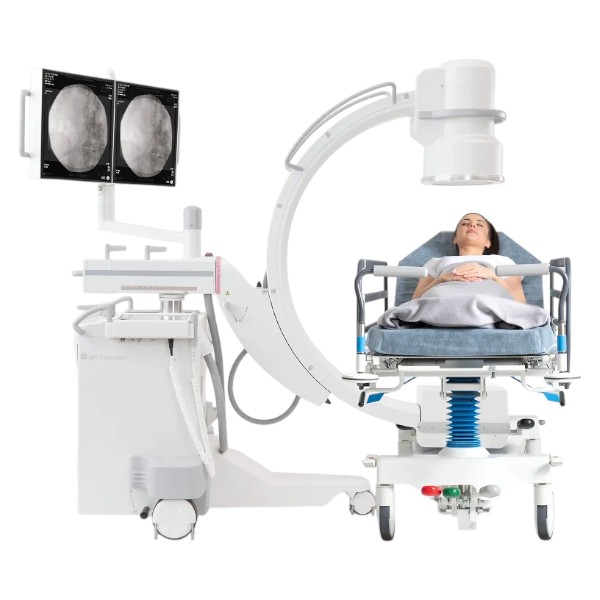

Designed for seamless compatibility with C-arm imaging systems, the stretcher features a column structure and ample space between the mattress platform and base. It includes a standard X-ray cassette tray with an ergonomic sliding mechanism for full-body imaging. The robust frame and central locking system support minor surgical procedures. Foldable IV poles, ergonomic push handles, and side rails improve navigation, while optional accessories further expand its capabilities.
Ease of Use

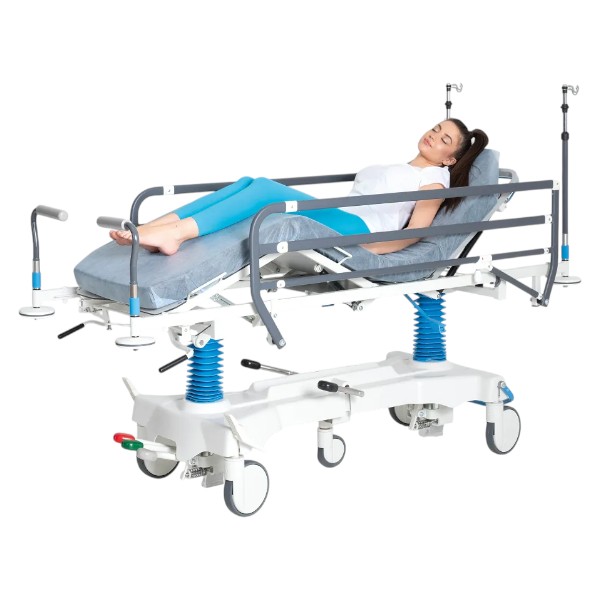

Foldable push handles and height-adjustable IV poles offer reliable support and free up space around the patient’s head and legs. The backrest and thigh sections are adjusted via gas springs with locking mechanisms, while the lower leg section uses a user-friendly latch system. Height adjustments, as well as Trendelenburg and reverse Trendelenburg positions, are controlled by a foot-operated lever. Large wheels, a directional wheel, and an optional fifth wheel ensure smooth and effortless transport.
The Numbers:
- Length: 2125 mm
- Width (overall): 825 mm
- Minimum height: 560 mm
- Maximum height: 890 mm
- Back rest segment inclination: 80°
- Trendelenburg position: 15°
- Reverse-Trendelenburg position: 15°
- Maximum load: 250 kg

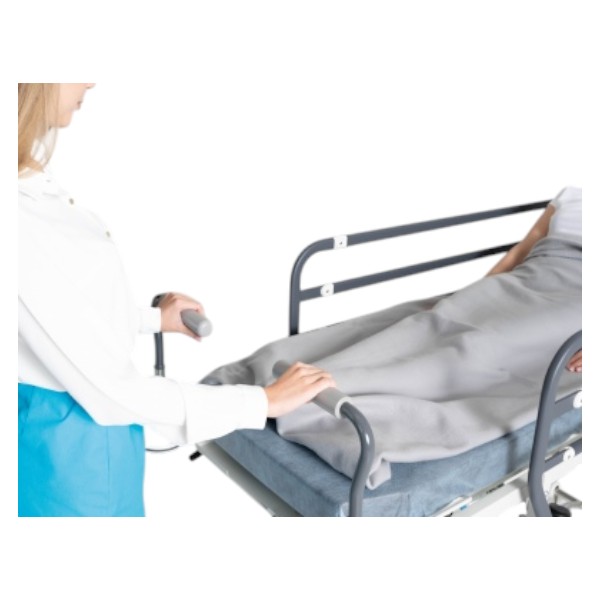

Foldable push handles
Integrated push handles offer a secure grip for transport. They fold below the mattress, ensuring unrestricted patient access and full staff range of motion.

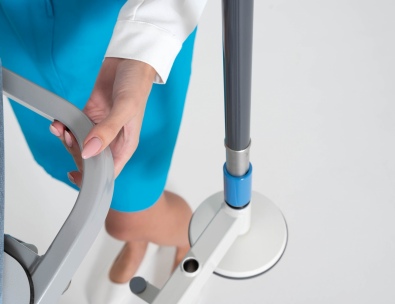

Additional grip points

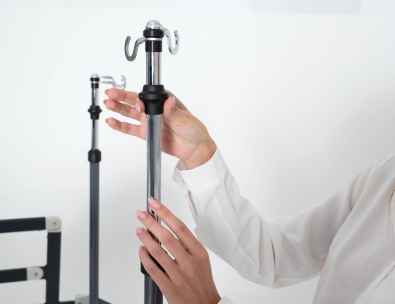

IV poles

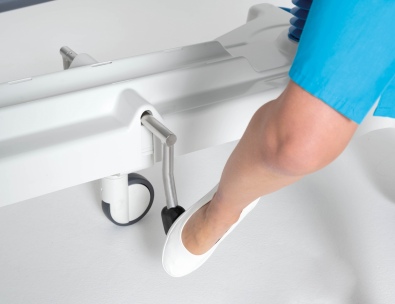

Fifth wheel
The optional fifth wheel (WW-25.00) significantly improves stretcher maneuverability and mobility. Its quick activation makes navigating corners easy, even with one person operating the stretcher.
Directional wheel

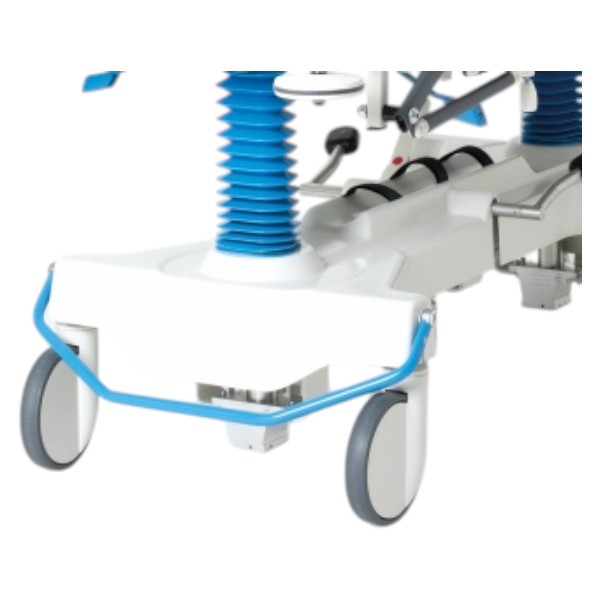

Large wheels
The Famed STRIDER boasts 200mm wheels for superior stability and easy maneuvering, even on uneven terrain. Its rubber tread provides excellent grip and protects surfaces.

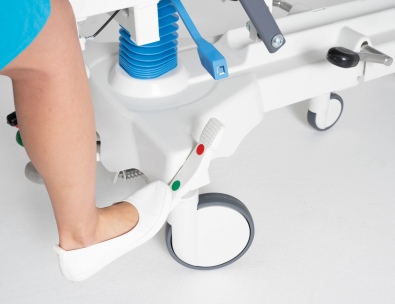

Central wheel lock
Safety belts
Two sets of safety belts (WW-12.0 W1) with adjustable length allow for securing the patient during transport and minimize the risk of falls (optional).

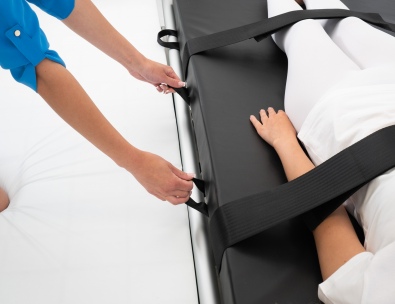

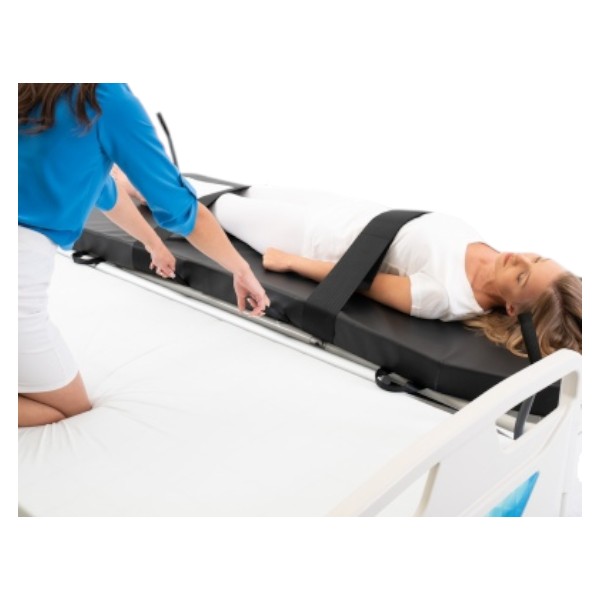

Transfer mattress
The transfer mattress (WW-14.9), equipped with special handles, enables easy transfer of the patient from the stretcher to a hospital bed or operating table (optional).

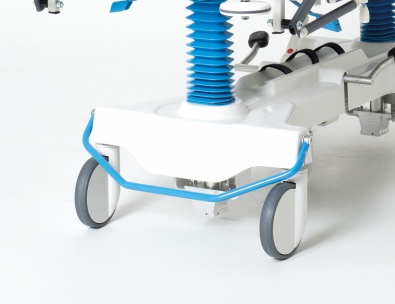

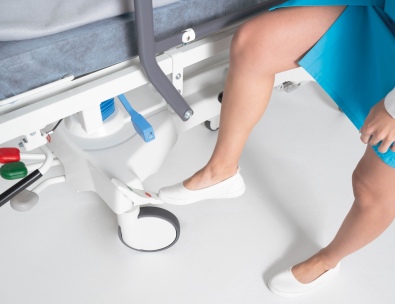

QuickBrake™ system
QuickBrake™ instantly stops stretchers with a foot-activated lever, providing a stable platform for medical staff to begin resuscitation, accessible even from the side.

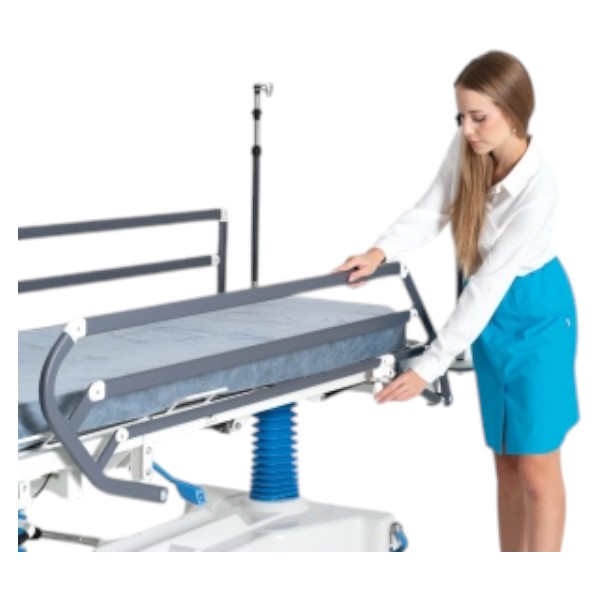

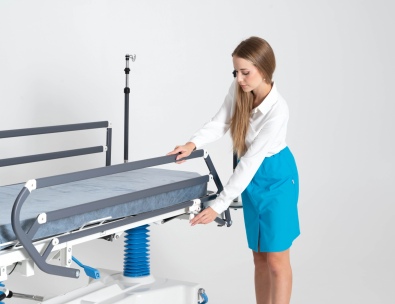

Side rails
Famed STRIDER’s side rails maximize patient safety. They pass rigorous tests, withstand over 100kg pressure, integrate seamlessly, and prevent falls, ensuring easy, safe transfers.
Additional information
| Weight | 150 kg |
|---|
