Illuco IDS 9100 Dermatoscope
IDS-9100 delivers 12x magnification, UV imaging, and high color accuracy for advanced skin examinations, with smartphone compatibility and infection control features.
Please allow 1 – 2 weeks for delivery.
Description
New Zealand has one of the highest rates of skin cancer globally, particularly melanoma, due to intense UV exposure and a predominantly fair-skinned population. This places significant responsibility on general practitioners and dermatology professionals to perform accurate, efficient dermoscopic examinations in both urban and rural settings.
IDS-1100 Hybrid Dermatoscope
The IDS-1100 is a high-performance hybrid dermatoscope designed to meet the demands of modern skin cancer screening. It combines cross-polarized and parallel-polarized light for versatile lesion analysis, eliminating the need for contact or immersion fluid in many cases.
Key Features:
- 10x magnification with a wide 22 mm field of view
- 32 LEDs for bright, optimized illumination
- Cross & parallel polarization for layered skin structure visualization
- Blue light indicator for active polarization mode
- Three brightness levels for adaptable lighting
- Small contact plates (6 mm, 8 mm) for hard-to-reach areas
- Smartphone & camera compatibility for clinical documentation
- Magnetic contact plate mechanism for easy detachment
- Auto shut-off after 5 minutes of inactivity
Strategic Implications
- Enables efficient lesion screening without immersion fluid, ideal for high-throughput clinics and mobile health units.
- Supports early melanoma detection, reducing specialist referrals and improving patient outcomes.
- Enhances workflow efficiency and infection control, aligning with New Zealand’s goals in preventive care and digital health integration.
What’s included?
- IDS-9100 Main Unit
- Compact Universal Clamp
- Leather Pouch
- USB-C Charging Cable
- Infection Control Film
- User Manual
- Lens Cleaning Cloth
Additional information
| Weight | 5 kg |
|---|
Videos
Specifications
IDS-9100 Dermatoscope Specifications
Magnification: 12× optical
Resolution: 0.006 mm
Aperture / Field of View: 20 mm

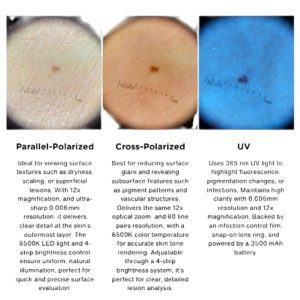

Lighting Modes: Cross-polarized, Parallel-polarized, UV (365 nm)
Brightness Levels: 4-step adjustment
LEDs: 16 white LEDs + 4 UV LEDs
Color Rendering Index (CRI): 90
Color Temperature: 6500 K
Diopter Adjustment: -6 to +6
Battery: Rechargeable 3.7V 3500 mAh lithium-ion
Usage Time: Up to 300 minutes continuous / 14 days standby
Charging Options: USB-C cable and desktop charging cradle

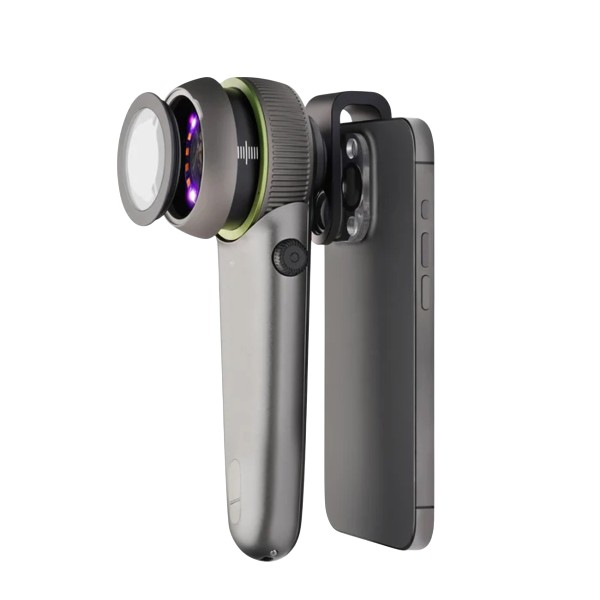

Smartphone Compatibility: Yes (via universal clamp adapter)
Hygiene Feature: Infection control film included
Body Material: Full metal construction
Dimensions: 169 × 58 × 35.7 mm
