Maxtec Maxo2Me Monitor

Description

Maxtec Monitor, Maxo2Me

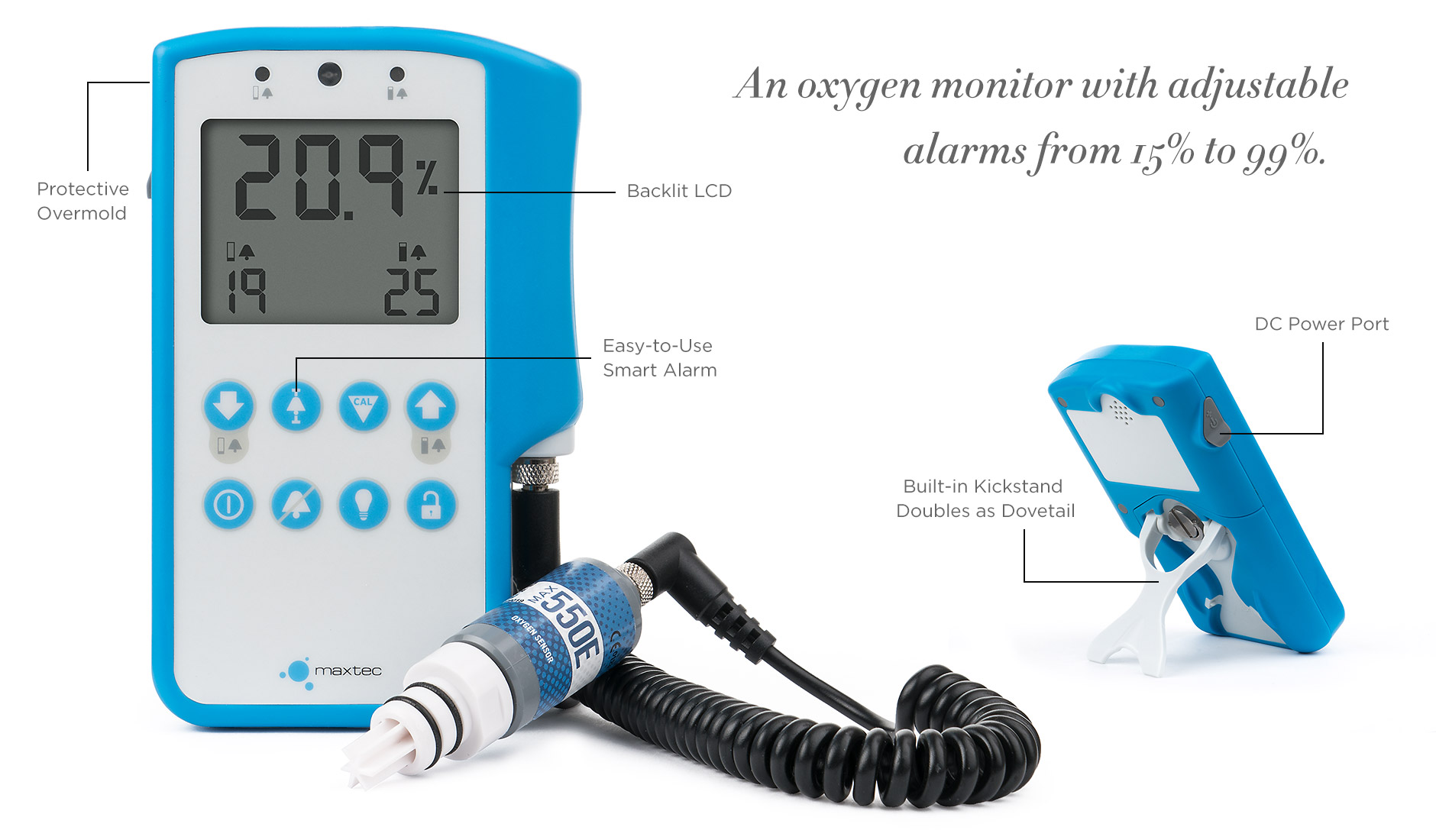

We are pleased to introduce the Maxtec MaxO2 ME Oxygen Monitor. The NEW MaxO2 ME was designed based upon years of feedback from customers. Maxtec has added numerous features, however still managed to create an easy-to-use, low maintenance monitor.  New features include a back lit LCD, smart alarms, DC power port, protective over-mold, built in kickstand, built in dove tail, extended battery life, and is also backed by the Maxtec 24 month warranty.

• 24 month warranty on both the analyzer and the sensor
• Large, Back-Lit LCD
• Smart Alarms – auto set alarms 3% +/- current reading
• 15% low to 99% Low alarm capabilities
• Long Battery Life – Up to 5,000 hours on 4 AA batteries
• DC Power Port, for use with optional remote power supply
• External Max-550E O2

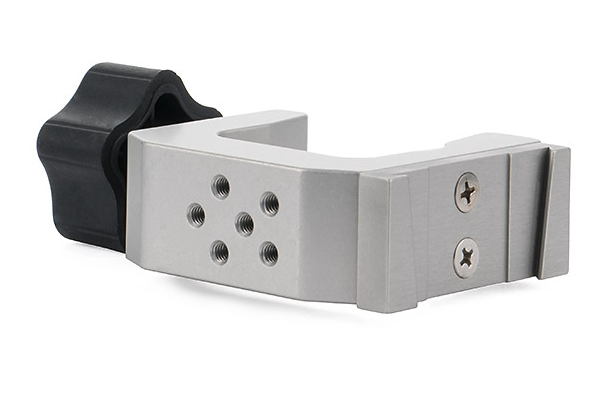

• Built in kickstand and dovetail

Maxtec Monitor, Maxo2Me Specifications

Measurement Range 0% to 100%
Display Resolution 0.10%
Response Time 90% of final value < 15 seconds at 23 °C
Warm-up Time None required
Cable Length 10 ft when fully extended
Calibration Reminder One week timer; restarted every calibration
Weight < 1.5 lbs (680 grams)
Min/Max Storage Temperature -15 °C to 50 °C (5 °F to 122 °F)
Operating Temperature 15 °C to 40 °C (59 °F to 104 °F)
Dimensions 3.6˝x 5.8˝x 1.2˝(91 mm x 147 mm x 30 mm)
Power Requirements Four (4) AA alkaline batteries (4 x 1.5 volts)
Optional Remote Power Supply Optional 7.5 VDC power adapter (does not function as charger; only extends battery life)
Battery Life 5,000 hours (continuous monitoring; no alarms, no backlighting)
Low Battery Indicator On-screen icon
Sensor Type Maxtec MAX-550 Series galvanic fuel cell
Sensor Connection M16x1 thread
Sensor Operating Life > 1,500,000 oxygen percent hours
High Alarm 18% to 99%
Low Alarm Range 15% to 99%
Alarm Accuracy Exact to displayed O2 values
Alarm System High/low alarm system, flashing yellow LEDs, nominal 975 Hz audio buzzer
Linearity +/- 1% of full-scale at constant temperature and pressure
Accuracy +/- 1% of full-scale at constant temperature, relative humidity, and pressure
