Ecoray Mini 90 Portable X-Ray Imaging for Field and Veterinary Use
The Ecoray Mini 90 is a compact, high-performance X-ray generator designed for professionals who need reliable imaging in mobile, remote, or unconventional environments. Whether you’re working in veterinary care, industrial inspection, or field-based diagnostics, the Mini 90 delivers powerful imaging capabilities in a lightweight and portable form.
Compact and Lightweight
Weighing only 4.0 kg, the Mini 90 is engineered for mobility. Its compact design allows for easy transport and setup, making it ideal for use in mobile veterinary clinics, farms, wildlife research, and industrial sites where traditional X-ray systems are impractical.
Hybrid Power System
The Mini 90 operates on both battery and AC power, offering flexibility in any location. Its high-capacity battery supports up to 150 exposures per charge, and recharges in just 1 to 1.5 hours, ensuring minimal downtime during busy field operations.
High-Quality Imaging
With a kV range of 40–90 and a 0.8 mm focal spot, the Mini 90 produces sharp, detailed images suitable for a wide range of applications. It is compatible with wireless flat panel detectors (FPDs), enabling fast and efficient digital imaging workflows.
User-Friendly Interface

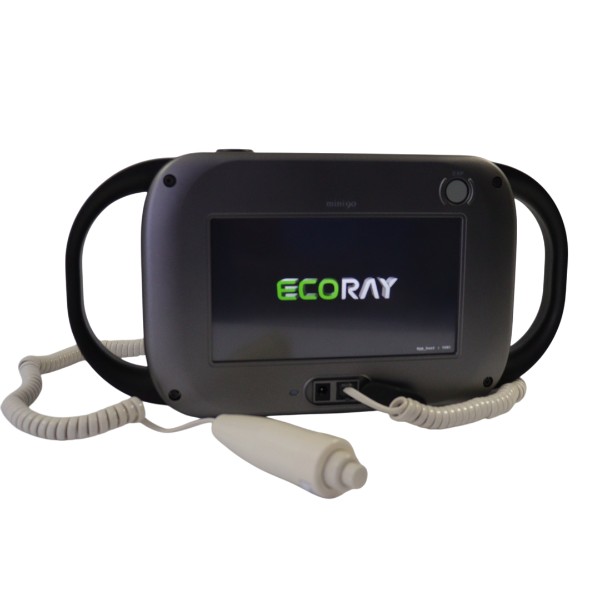

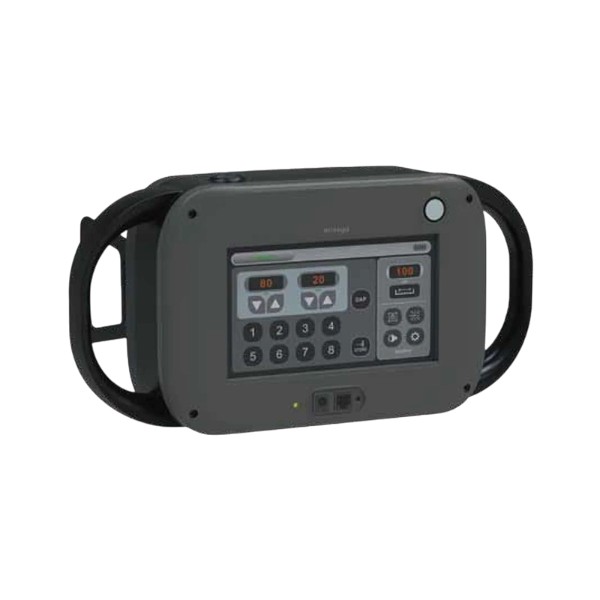

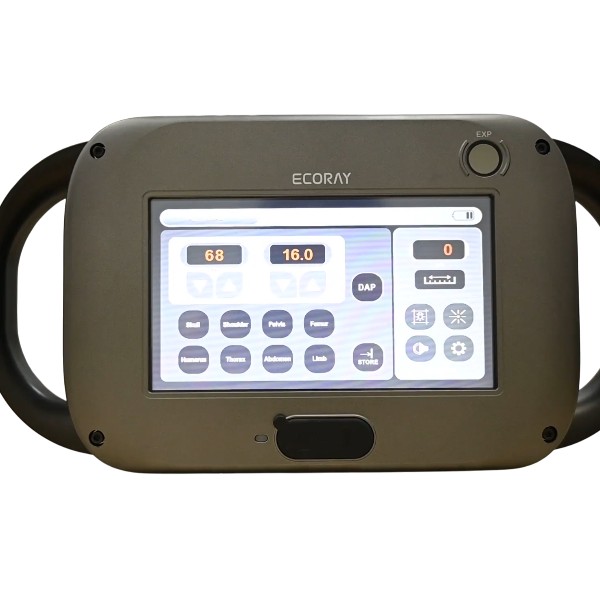

A bright LCD touchscreen provides intuitive control over exposure settings, allowing users to make quick adjustments in the field. The interface is designed for ease of use, even in challenging environments.
Precision and Efficiency

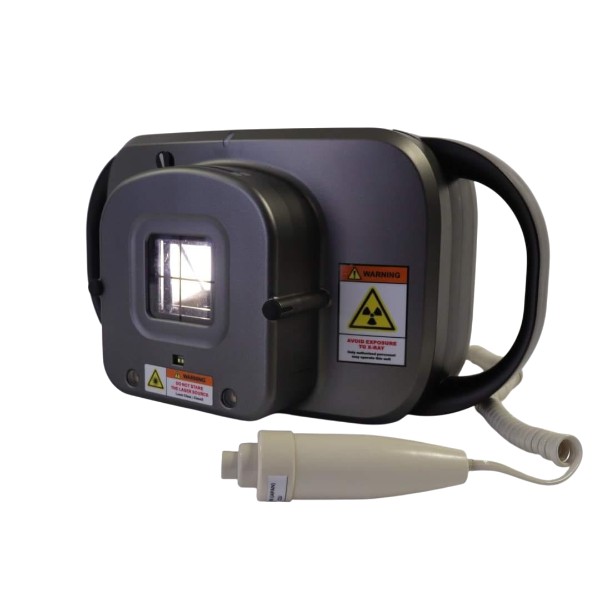

The built-in LED collimator lamp ensures accurate beam alignment, reducing the need for retakes and improving overall image quality. The stationary X-ray tube adds stability and consistency to every exposure.
Applications
- Veterinary Imaging
Ideal for on-site animal diagnostics in farms, shelters, and wildlife conservation efforts. Enables quick and accurate imaging without the need to transport animals to a clinic. - Industrial Inspection
Useful for non-destructive testing (NDT) and inspection of mechanical components, welds, and materials in manufacturing and construction environments. - Field Research and Remote Work
Supports imaging needs in archaeological digs, geological surveys, and other field-based scientific research where portability and reliability are essential.
Why Choose the Ecoray Mini 90?
The Ecoray Mini 90 is built for professionals who need dependable imaging in the field. Its combination of portability, power, and precision makes it a top choice for veterinary, industrial, and research applications. With smart features and rugged design, it’s ready to go wherever your work takes you.
Additional information
Weight | 20 kg |
---|
Downloads
Ecoray-MINI-90_Brochure
Specifications
General Specifications
- Model: Ecoray Mini 90
- Type: Portable Digital Radiography (DR) System
- Weight: 4.0 kg
- Dimensions: 337.4 × 254.8 × 168.9 mm
- Power Source: Hybrid (Battery + AC)
- Battery Type: Li-polymer, 22.2VDC, 2,200mAh
- Battery Life: ~150 exposures per charge (at 70 kV, 5 mAs)
- Charging Time: Approx. 1.0 – 1.5 hours
- AC Adapter: 100–240V, 50/60Hz (25.2V / 1.5A)
X-Ray Generator
- kV Range: 40 – 90 kV (1 kV steps)
- mA Range: 6 – 10 mA
- mAs Range: 0.32 – 20 mAs
- Power Output: 800W (10 mA @ 80 kV)
X-Ray Tube
- Type: Stationary
- Focal Spot Size: 0.8 mm
- Target Angle: 16°
- Anode Heat Storage Capacity: 8000 J
- Max Anode Cooling Rate: 110 W
- Nominal Anode Input Power (DC, 0.1s): 1280 W
- Inherent Filtration: 0.5 mm Al
Collimator
- Source-to-Image Distance (SID): 100 cm / 44 cm × 44 cm
- Lamp: LED, 3.25VDC, 10W
Imaging & Software
- Detector Compatibility: 14” × 17” Wireless Flat Panel Detector (FPD)
- Acquisition Software: Ecoview
- AI Features: TB Detection (can be excluded for non-medical use)
